ADVANTAGES OF INCORPORATING THE SUSPENSION SYSTEM TO THE FINITE ELEMENT MODEL

CADE usually employs the Finite Element Method (FEM) to undertake the simulation modelling and analysis of complex structural elements. Thus, this method is often used to analyse critical mechanical parts and elements, whose performance may be conditioned or influenced by other mechanical systems or elements.

In the railway sector and, more specifically, in the analysis of railway frame structures, the consideration of suspension systems (bogies) in its Finite Element Analysis becomes highly relevant: taking it into consideration may allow to characterise (in the most realistic way possible) the bogie rigidity transmitted to the frame structure, according to the requirements of the standard “UNE-EN 12663 (2014) Structural requirements of railway vehicle bodies”.

The difference between implementing or not implementing the suspension system in the finite element analysis can be easily quantified. The results can be compared by analyzing the simulation of a multi-axle railway frame, applying the finite element method and using ANSYS software. For this purpose, two calculation models must be considered:

  • Model implementing the suspension system.
  • Model without implementation of the suspension system.

Results in the analysis of railway frame structures

Equivalent von Mises stress (MPa)

Stress distribution in both calculation models analysed (with and without suspension system).

Model implementing the suspension system

l modelo de elementos finitos (distribución de tensiones considerando el sistema de suspensión)
Detalle del modelo de elementos finitos (distribución de tensiones considerando el sistema de suspensión)

Model without implementation of the suspension system

modelo de elementos finitos (distribución de tensiones sin considerar el sistema de suspensión)
detalle del model modelo de elementos finitos (distribución de tensiones sin considerar el sistema de suspensión)

Considering that stress results are the most important indicators when validating a structure of this type, not to include bogies in finite element analysis might be a too conservative premise, from the structural integrity point of view, that may unnecessarily increase the material and manufacture costs.

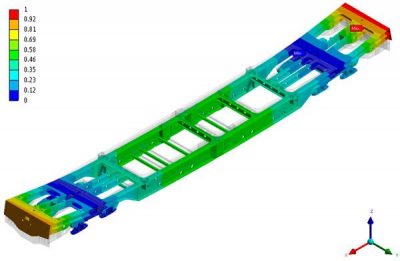

Lineal buckling. First deformation mode (mm)

Modelo considerando el sistema de suspensión​​

Modelo de elementos finitos de estructura ferroviaria considerando sistema de suspensión
Modos Factor pandeo
1.9.81
2.10.55
3.11.45
4.14.92
5.17.11
6.17.37
7.17.76
8.17.81
9.18.02
10.18.06

Modelo SIN considerar el sistema de suspensión​

Modelo de elementos finitos de estructura ferroviaria considerando sistema de suspensión
Modos Factor pandeo
1.13.45
2.16.95
3.17.19
4.17.28
5.17.38
6.17.55
7.17.62
8.17.66
9.17.89
10.19.01

Continuing with the comparative results and observing the deformation modes and buckling factors, it appears that the implementation of bogies in the finite element analysis provides higher safety factors against buckling. In fact, considering the suspension system in the model allows to identify buckling modes that cannot be identified in finite element models without it. When the suspension system is not considered, the direct application of boundary conditions on the frame stiffens the model, generating hardly conservative safety values ​​against buckling and showing fictitious failure modes.

Conclusions of the analysis of railway frames with and without bogies

In conclusion, by considering bogies in railway frames validation, CADE achieves:

  • To lighten railway structures, reducing material and manufacturing costs.
  • To obtain safer railway structures, because it is possible to identify buckling modes (not found with finite element analysis without bogies consideration) and at the same time, to obtain higher safety factors against buckling.

What is a suspensions system (bogie)?

The suspension system consists of a primary suspension (which transmits efforts between the wheels and the bogie) and a secondary suspension (which is responsible for transmitting the efforts between the bogie and the frame of the railway vehicle).

Both suspensions consist of a series of springs and shock absorbers that allow to transmit efforts between the wheels, the bogie and the railway frame.

Sistema de suspensión en estructuras ferroviarias utilizado en modelo de elementos finitos durante la fase de análisis y simulación

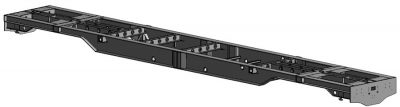

Bastidor ferroviario utilizado en las simulaciones con modelo de elementos finitos
