Brief introduction to TEMA HEAT EXCHANGERS design and selection

TEMA Standards are worldwide accepted as the authority on shell and tube heat exchangers design and manufacturing. These standards are the most commonly used in a wide range of industries throughout the world: refineries, oil and gas, power generation, etc.

The acronym TEMA stands for “Tubular Exchangers Manufacturers Association”, it is a trade association of leading manufacturers of shell and tube exchangers who have been pioneers in the research and development of heat exchangers. The association meets regularly to update its published standards, respond to some inquiries, and discuss about the topics related to the industry.

TEMA Standards define the style of heat exchangers and the machining and assembly tolerances. They are divided in three major classifications, related to its duty:

  • TEMA C – General Service
  • TEMA B – Chemical Service
  • TEMA R – Refinery Service

As there are many variations in mechanical designs for front and rear heads and shells, TEMA designations correspond to each major type of front head, shell type and rear head. For example, in TEMA Type BEM, letter “B” identifies the front head, letter “E” identifies the middle section (shell design) and letter “M” identifies the rear head.

Content

Removable Bundle, Internal Split Ring Floating Head: : Type AES, BES, etc.

These designs are recommended when frequent tube bundle removal is necessary. They are more favourable to thermal shock than AEW or BEW designs and they are also suitable for volatile or toxic fluids.

Advantages:

  • Floating head design allows thermal expansion
  • Higher heat transfer surface area than pull-through designs (AET or BET Types)
  • Available to multiple passes on tube side


Limitations:

  • Shell cover, split ring and floating head cover must be removed to remove the tube bundle, which results in higher maintenance costs


Applications:

  • Chemical processing applications for toxic fluids
  • Special gas after coolers and intercoolers

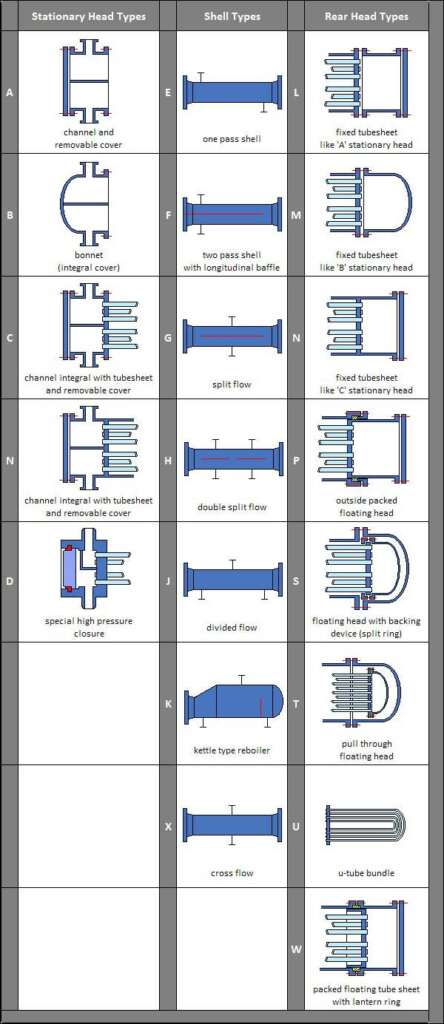

TEMA heat exchangers design classification - Intercambiadores de calor TEMA

Straight Tube and Fixed Tube Sheet: Type BEM, AEM, NEN, etc.

This design is the simplest design and usually more economical. The tube sheet is welded to the shell, while heads are bolted to the tube sheet.

Advantages:

  • More economical than removable bundle designs
  • Capable of multiple pass designs



Limitations:

  • Chemical solution is need to clean the shell side
  • No capacity to absorb thermal expansion between the outer shell and tube bundle

Removable Bundle, Pull Through Floating Head: Type AET, BET etc.

These types of design are the best option for applications when frequent tube bundle removal is necessary because  the floating head is bolted directly to the floating tube sheet. This allows the bundle to be pulled at the same with the head.

Advantages:

  • Floating head design allows thermal expansion
  • Shell side can be inspected and mechanically cleaned
  • Large shell side nozzle entrance area for proper distribution over the bundle
  • Multiple tube side passes available
  • Suitable for volatile or toxic fluids



Applications:

  • General industrial applications requiring frequent cleaning
  • Chemical processing applications for toxic fluids
  • Hydrocarbon fluid condensers

Removable Bundle, U-tube: Type BEU, AEU etc.

This design is recommended for high thermal shock applications, as each tube can expand and contract independently and u-tube bundles are normally very economical. It is usually the best option for maximum thermal expansion applications.

Advantages:

  • U-tube design allows differential thermal expansion between the shell and the tube bundle as well as between individual tubes
  • Capacity to handle high thermal shock applications
  • More economical design for removable bundles
  • Shell side can be inspected and mechanically cleaned
  • Bundle can be removed from one end for cleaning or replacement
  • Multiple tube side passes are available



Applications:

  • Optimal for steam to liquid applications
  • Chemical, oil and water heating applications

CADE Engineering Services for TEMA Heat Exchangers Design

CADE is an engineering company experienced in TEMA heat exchangers assessment and design, for a wide range of industries and clients: final users, manufactures and other engineering companies. Within its engineering and consulting services and capabilities, CADE especifically provides the following services around Heat Exchangers :

  • Thermal / hydraulic design
  • Mechanical design
  • Fluid-dynamic simulation (CFD)
  • Thermo-structural simulation by finite elements (FEM)
  • Detailed engineering (manufacturing drawings)
  • Technical purchasing management (procurement)
  • Dimensional control with point cloud
  • In service failure analysis
  • Integrity and remaining life assessment. Fitness for Service
